Features
【5 Years Accuracy Warranty】DOVOH is committed to providing high-accuracy laser levels to our customers. For laser levels with unqualified accuracy caused by regular use in 5 years, DOVOH will repair or replace with a new item without charge. And DOVOH provides 2 years warranty for any quality issues caused by regular use.

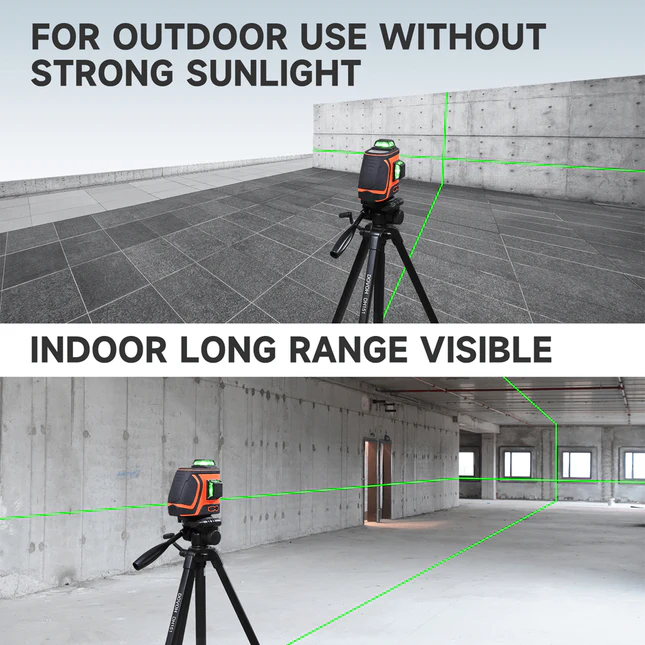

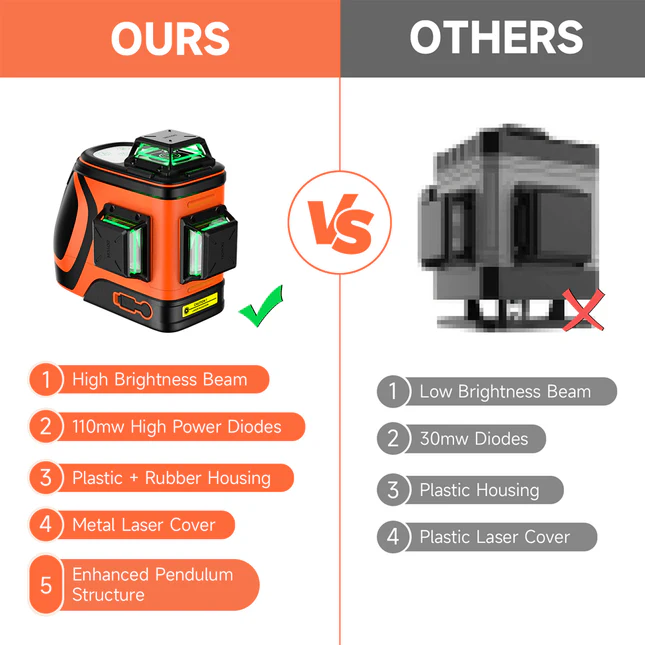

【High Visibility Green Laser Line】This self-leveling laser level outdoor adopts 110mw high power laser diodes that can project brighter green beams, while most other laser levels use 30mw laser diodes. Even so, the laser beam is hardly visible in daylight. We recommend you use a receiver in daylight.

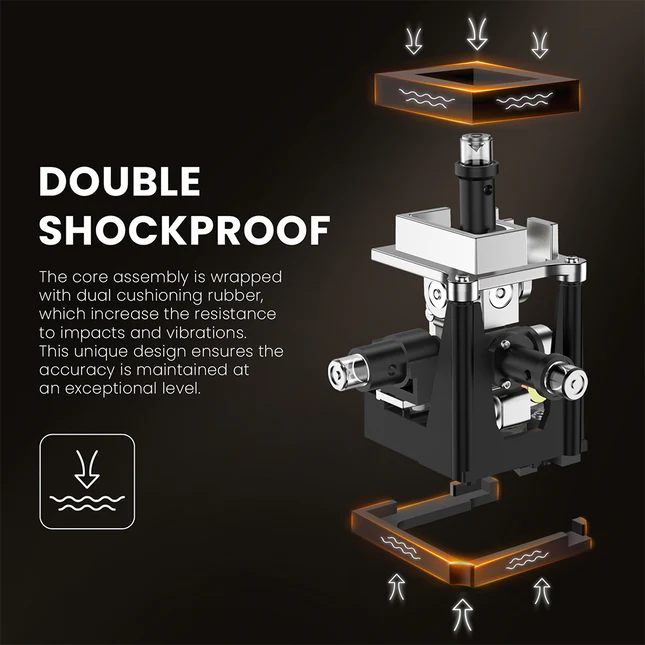

【Durable Pendulum Assembly】The laser level 360 self-leveling features an exclusive pendulum assembly design. It contains two cushioning structures to protect the pendulum from delivery collision, drop, and daily use. It ensures a longer lifespan and keeps high accuracy from long-time usage.
【12 lines Laser Level 3d】This laser levels for construction include one 360° horizontal line and two 360° vertical lines which cover all around the room. You can lock the pendulum to enter manual mode, lock the lines at any angle, and unlock the pendulum to switch to self-leveling mode. The self-leveling angle is ±4°.

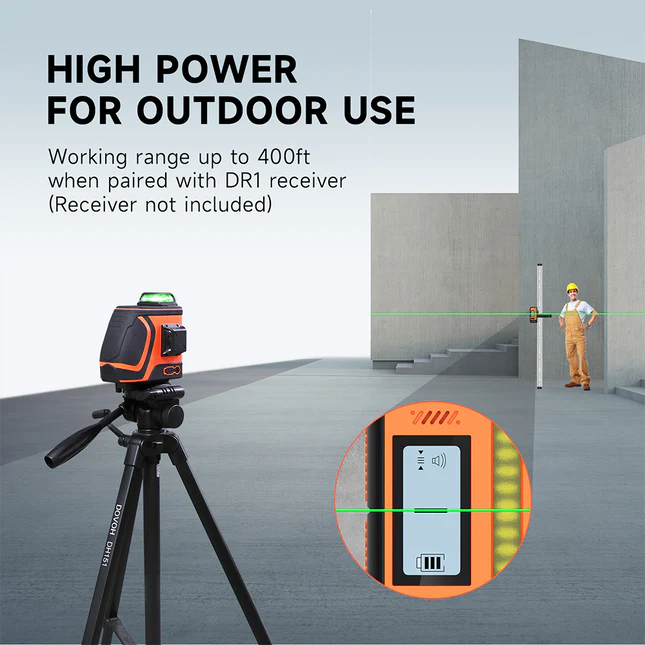

【Outdoor Laser Level with Pulse Mode】The laser level outdoor 360 support pulse mode. It works with a 10 KHz receiver (receiver is not included). The operating range can be extended to 400ft/122m under pulse mode with a laser receiver. Working with the receiver is recommended for use in daylight.
【Dual High Capacity Batteries】This laser level outdoor use contains two 7.4V 2600mAh lithium batteries, which allows the electronic laser level to work for over 8 hours with 12 lines fully opened. When the battery is out of power, it can still be plugged in at the job site.
Specifications

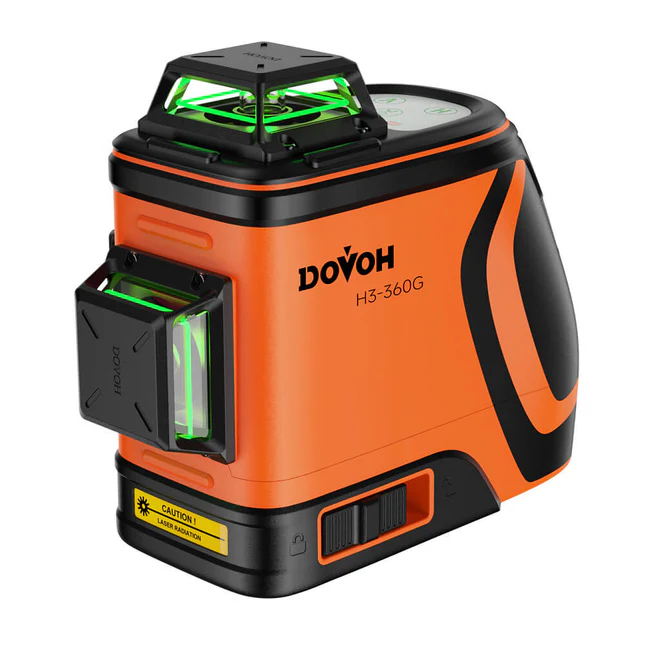

Model: H3-360G
Laser Class: Ⅱ
Item Dimensions: 5.91×3.15×4.92in (150x80x125mm)
Item Weight: 825g
Laser Type: 520nm, <1mw
Laser Beam: Green
Working Range (300LUX): 66ft/20m
Working Range (with laser receiver): up to 400ft/122m
Working Time with 4 laser lines: 18 hours
Working Time with 8 laser lines: 11 hours
Working Time with 12 laser lines: 8 hours
Leveling Accuracy: ±1/13 in. at 33ft (±2mm/10m)
Self-leveling Range: ±4°
Self-leveling Time: < 4 seconds
Power Adapter: 5V=1A
Battery: 7.4V 2600mAh Li-ion Battery
Charger: Input: 5V=1A, Output: 500mA
Charging Time: About 6 hours
Charging Port: Type-C

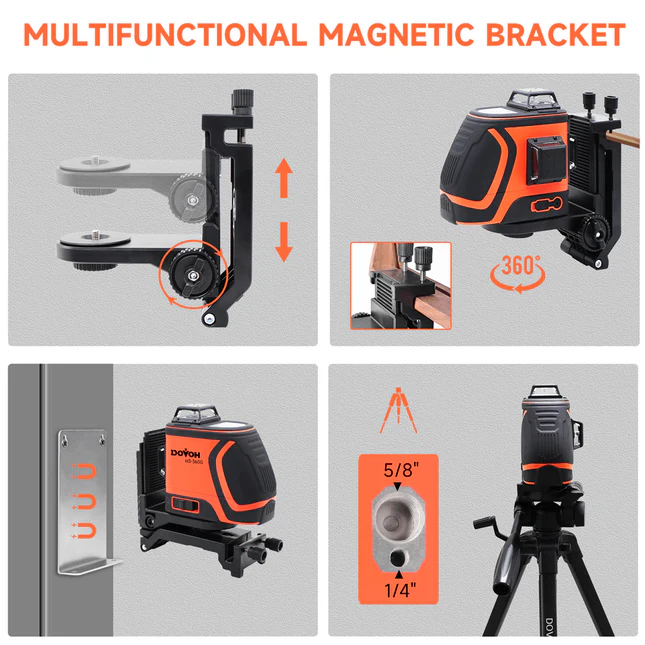

Thread Mount: 1/4″-20 & 5/8″-11
IP Rating: IP54 (Water & Dustproof)
Operation Max. Humidity: 90%
Operation Temperature: -10℃ ~ 40℃ (14℉ ~ 104℉)
Storage Temperature: -20℃ ~ 70℃ (-4℉ ~ 158℉)

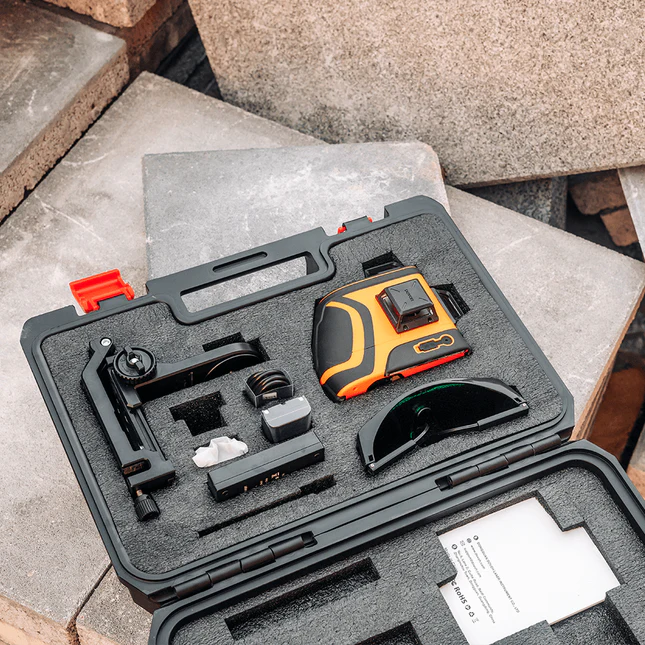

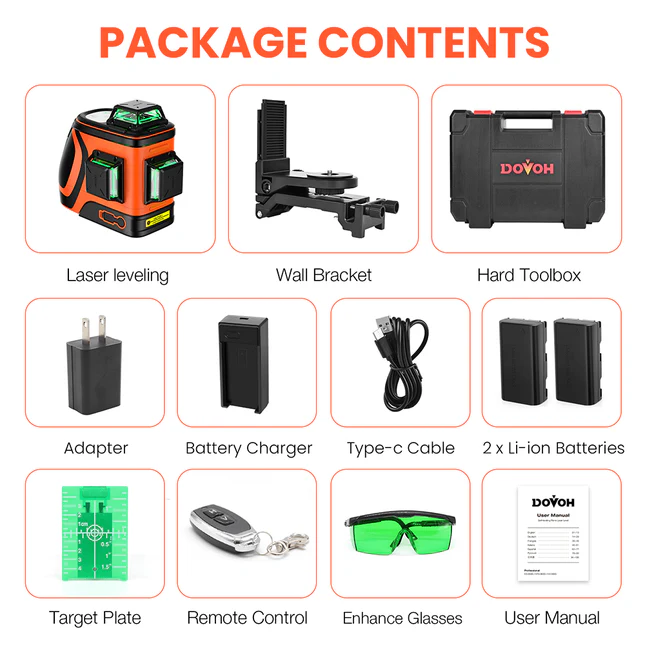

Packing List
