Outdoor Laser Level with Receiver- Dovoh H3-360G-KIT

Features

【Outdoor Use with Receiver】This DOVOH H3 Laser Level Kit equipped with a high-performance laser level receiver, ensuring accurate signal detection and enhanced visibility even under direct sunlight, making it ideal for outdoor projects.

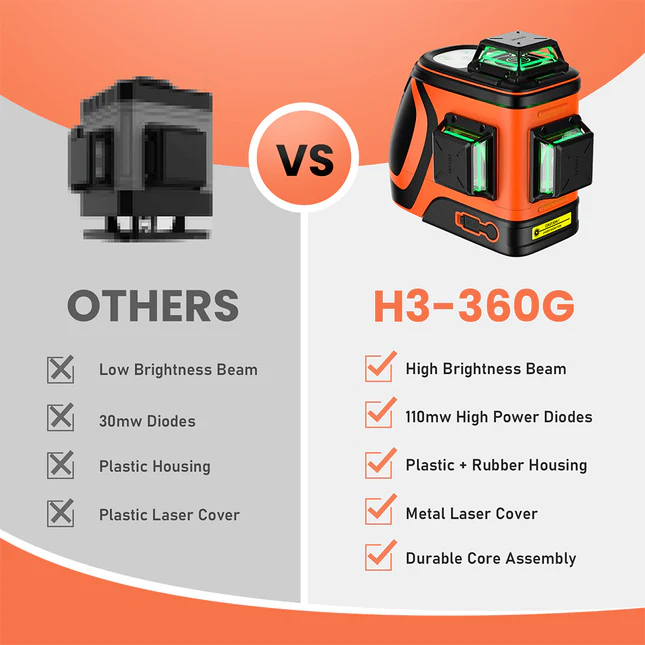

【High Visibility Green Laser Line】This Outdoor Laser Level 360 Self Leveling utilizes 110mW high-power laser diodes to project brighter green beams, significantly stronger than the typical 30mW diodes used in most laser levels. A powerful laser beam will extend the range when working with the receiver.
【Useful Accessories for Outdoor】DOVOH H3 Laser Level includes a target plate and green glasses to enhance the laser beam visibility under sunlight, ensuring efficient performance in outdoor conditions.

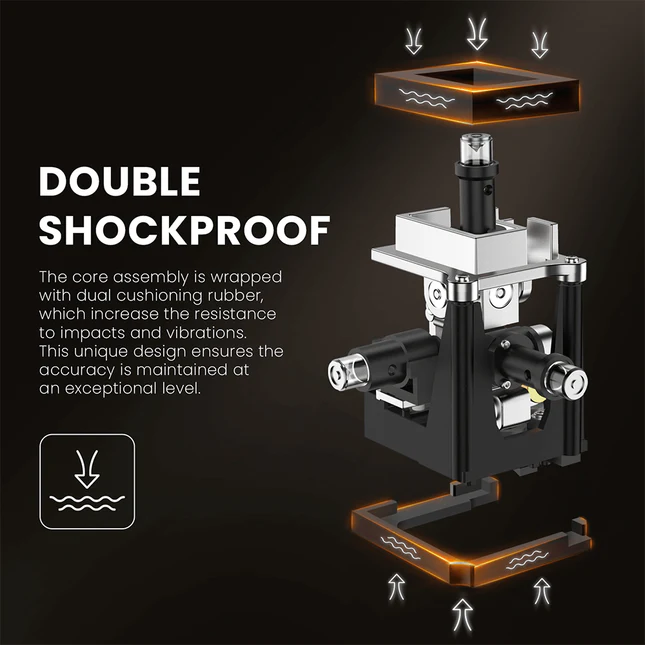

【Double Shockproof Assembly】The DOVOH H3 Construction Laser Level features a unique double shockproof design, with the core assembly wrapped in two layers of cushioning rubber to absorb shocks and ensure durability. This robust construction enhances the tool’s longevity and reliability, making it ideal for tough job site conditions.
【Dual High Capacity Batteries】DOVOH H3 Outside Laser Level comes with dual 2600mAh batteries, providing extended operational time and reducing the need for frequent recharging, ensuring uninterrupted performance on long projects.

Specifications

Model: H3-360G
Laser Class: Ⅱ
Item Dimensions: 5.91×3.15×4.92in (150x80x125mm)
Item Weight: 825g
Laser Type: 520nm, <1mw
Laser Beam: Green
Working Range (300LUX): 98ft/30m
Working Range (with laser receiver): up to 400ft/122m
Working Time with 4 laser lines: 18 hours
Working Time with 8 laser lines: 11 hours
Working Time with 12 laser lines: 8 hours
Leveling Accuracy: ±1/13 in. at 33ft （±2mm/10m)
Self-leveling Range: ±4°
Self-leveling Time: < 4 seconds
Power Adapter: 5V=1A
Battery: 7.4V 2600mAh Li-ion Battery
Charger: Input: 5V=1A, Output: 500mA
Charging Time: About 6 hours
Charging Port: Type-C
Thread Mount: 1/4″-20 & 5/8″-11

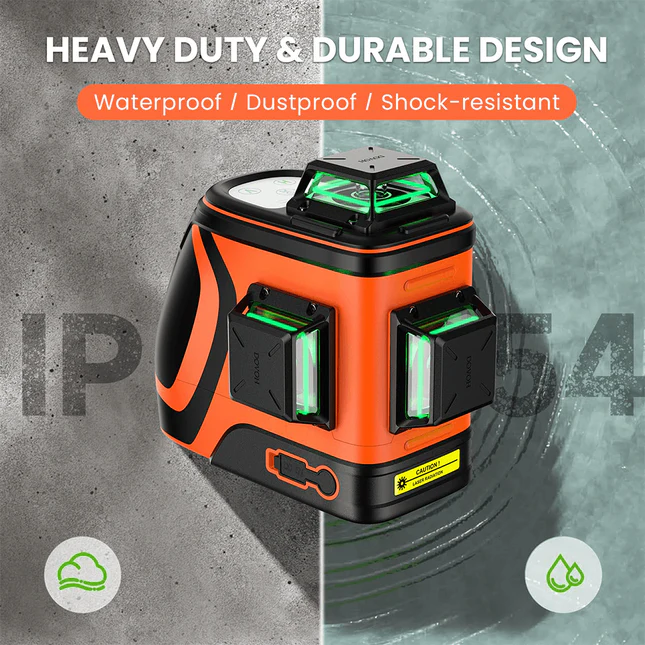

IP Rating: IP54 (Water & Dustproof)
Operation Max. Humidity: 90%
Operation Temperature: -10℃ ~ 40℃ (14℉ ~ 104℉)
Storage Temperature: -20℃ ~ 70℃ (-4℉ ~ 158℉)

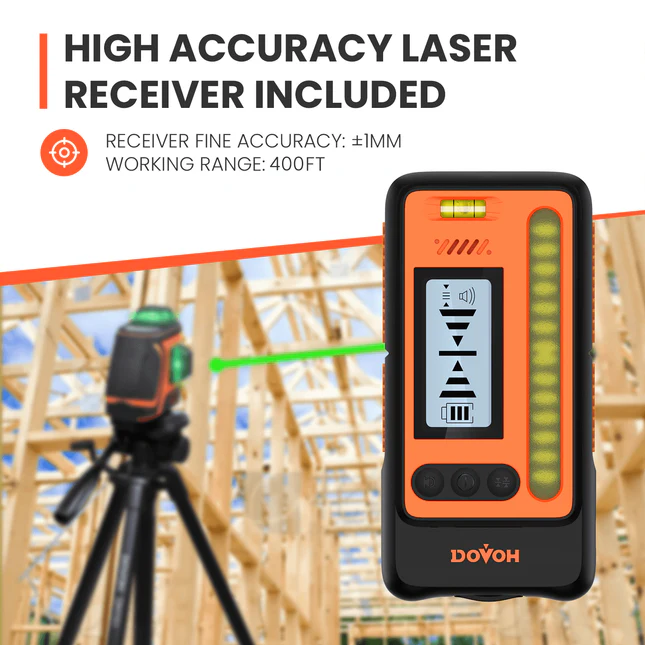

Laser receiver: DR1
Article number: 102107
Working range”: 5-X m
Reception angle: 90º
Reception accuracy: “Fine” ±1mm; “Coarse” ±3mm
Operating temperature: -10℃ to + 50℃
Storage temperature: -10℃ to + 70℃
Relative air humidity max: 90%
Pollution degree according to lEC 61010-1: 3
Batteries: 2×1.5V LR6(AA)
Approx. operating time: 14h
Weight according to EPTA-Procedure 01:2014: 227g
Dimensions (length x width x height): 72x25x142mm
Protection rating: IP54 (dust and splash-proof)

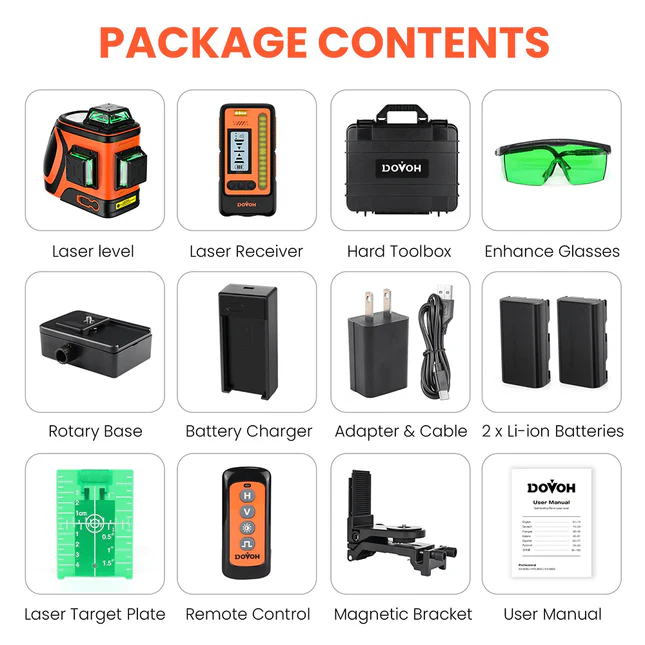

Packing List

1 x Outdoor Laser Level
1 x Laser Receiver
1 x Hard Toolbox
1 x Enhance Glasses
1 x Rotary Base
1 x Battery Charger
‎1 x Adapter & 1 x Type-C Cable
2 x Li-ion Batteries
1 x Green Target Plate
1 x Remote Control
1 x Magnetic Bracket
1 x User Manual
