High Accuracy Line Laser Detector – DR1

FAQ

Q: What laser levels are compatible with the DOVOH DR1 laser level receiver?
A: The DOVOH DR1 receiver is compatible with all DOVOH laser levels, including H3-360G, P3-360G, P4-360G, K3-360G, K4-360G, and C2-120G. Generally, it is also compatible with other laser levels with a 10KHz frequency pulse.

Q: Can the DOVOH DR1 laser receiver detect a red and green laser beam?
A: Yes, it can detect red and green beams both.

Q: Can the DOVOH DR1 laser level detector work with the rotary laser level?
A: No, it can’t work for the rotary laser level.

Q: How long is the working range of the DR1 laser level receiver?
A: The working range is up to 197ft, depending on the environmental condition and the power of the laser level.

Specifications

Laser receiver: DR1
Article number: 102107
Working range”: 5-X m
Reception angle: 90º

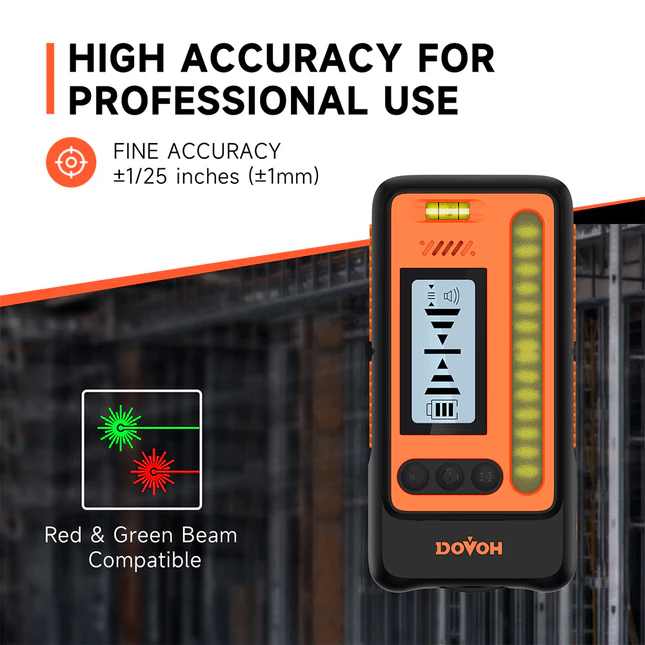

Reception accuracy: “Fine” ±1mm; “Coarse” ±3mm
Operating temperature: -10℃ to + 50℃
Storage temperature: -10℃ to + 70℃
Relative air humidity max: 90%
Pollution degree according to lEC 61010-1: 3
Batteries: 2×1.5V LR6(AA)
Approx. operating time: 14h
Weight according to EPTA-Procedure 01:2014: 227g
Dimensions (length x width x height): 72x25x142mm

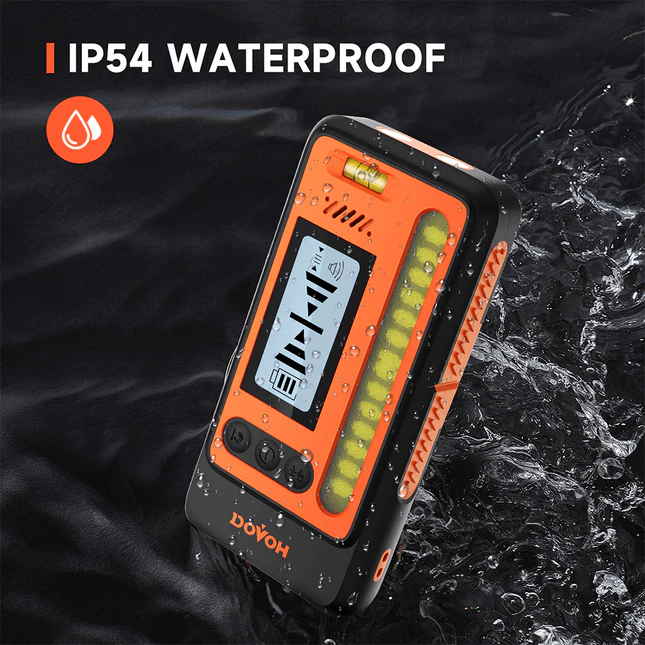

Protection rating: IP54 (dust and splash-proof)

Packing List

‎1 x DR1 Laser Level Receiver
1 x Protective Pouch
1 x User Manual
2 x Alkaline Batteries

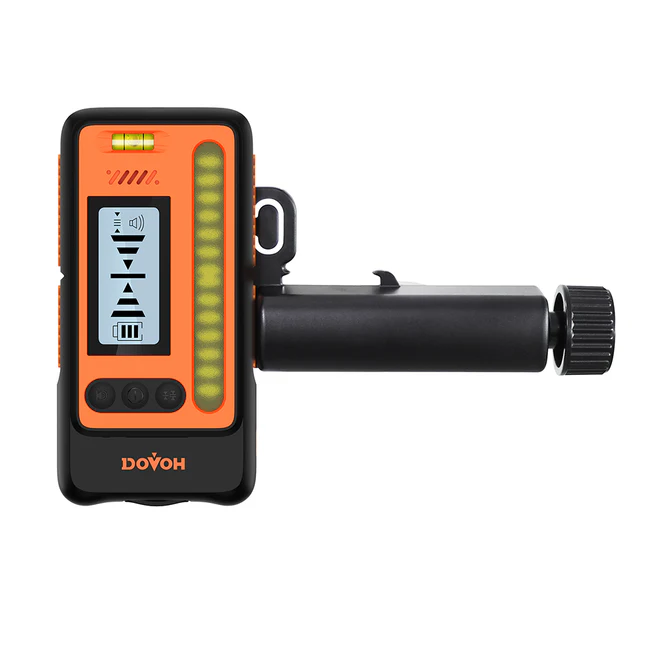

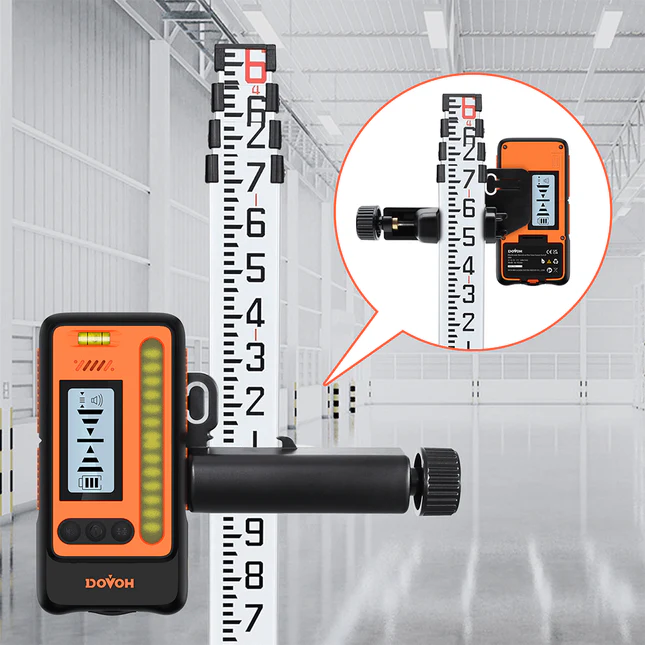

1 × Heavy Duty Clamp
